Revolutionize Pyrophyllite Powder Production: Ultrafine Vertical Mills for Superior Quality and Efficiency
Pyrophyllite is a 2:1 type hydrated aluminum silicate mineral with a layered structure. Its molecular formula is Al2［Si4O10］(OH)2 or Al2O3·4SiO2·H2O. It is mostly produced in the form of flakes, radials, blocks and cryptocrystalline scales. Common colors include white, yellow, light blue and gray-green. As a very important non-metallic mineral resource, it has the characteristics of […]
Fineness:
80~600 mesh
Capacity:
6~240t/h
Scene:
The equipment is widely used in power, metallurgy, solid waste treatment, cement, chemical industry, non-metallic minerals, non-ferrous metal minerals and other industries, cement raw materials, clinker, desulfurized limestone powder, slag, steel slag, manganese ore, coal mine, phosphate rock and other materials grinding.
Pyrophyllite is a 2:1 type hydrated aluminum silicate mineral with a layered structure. Its molecular formula is Al2［Si4O10］(OH)2 or Al2O3·4SiO2·H2O. It is mostly produced in the form of flakes, radials, blocks and cryptocrystalline scales. Common colors include white, yellow, light blue and gray-green.
As a very important non-metallic mineral resource, it has the characteristics of excellent insulation, acid resistance, low thermal conductivity, high melting point and specific heat, etc. It is widely used as an admixture for refractory materials, ceramics, building materials, glass fiber, pesticides, molecular sieves, and filler for rubber, papermaking, paint, plastic, candy, medicine, etc. In addition, it is also used in artificial diamonds, petroleum, electricity, etc.; it can also be used as high-grade paving stones.
Why choose Ultrafine Vertical Mill?

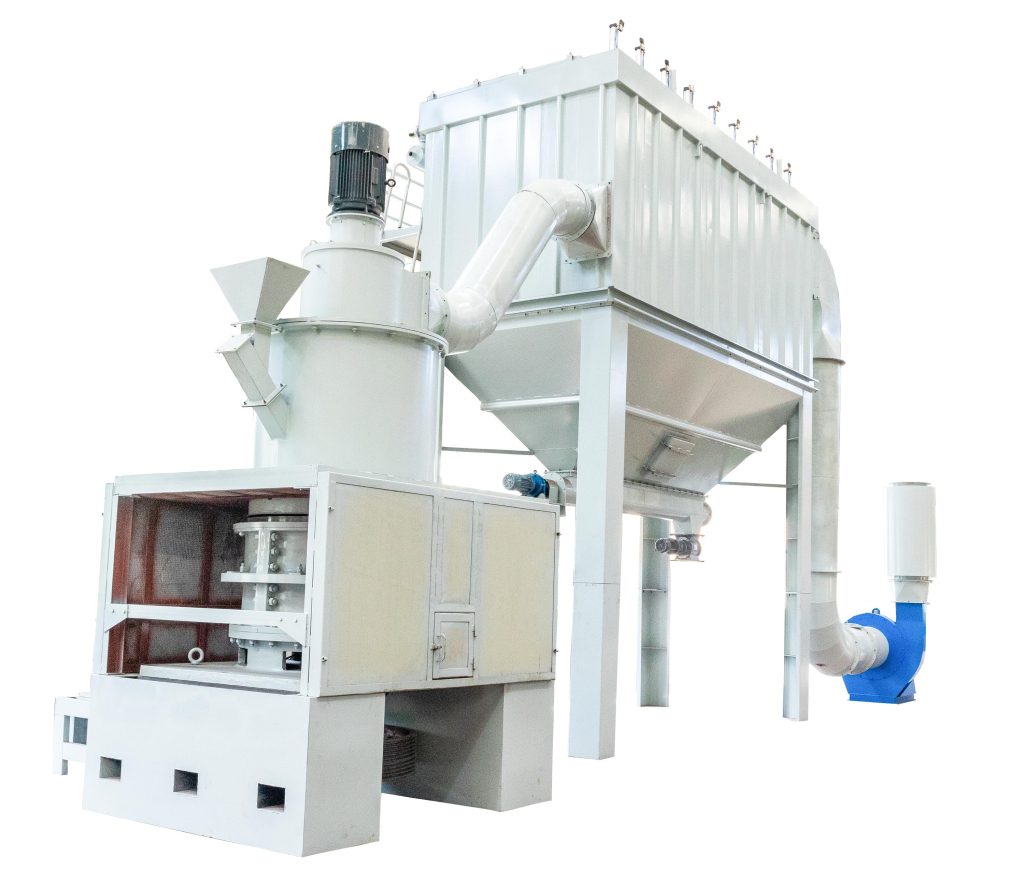

Ultrafine vertical mill
Fineness: 325~1500 mesh Productivity: 3.8~16t/h
Model
CR1200
CR1400
Capacity (t/h)
3.8~12.0
6~16.0
Fineness (mesh)
325~1500
325~1250
Particle Size Distribution (D97)
10~45±1μm
10~45±1μm
Specific Surface Area
±1000cm²/g
±1000cm²/g
System Power (kW)
560~600
700~750
Functional characteristics
The equipment is widely used in ultrafine grinding of non-metallic minerals such as calcite, marble, limestone, heavy calcium, talc, barite, dolomite, etc.; product fineness: 45~8μm (325~1500 mesh), production capacity: between 3.8~16t/h; it can provide high-quality fillers and additives for papermaking, plastics, coatings, rubber, inks, chemicals and other industries.
High cost performance
It integrates ultrafine grinding, modification, ultrafine grading and conveying collection, and has the advantages of stable and reliable operation, high grinding efficiency, stable product quality, strong equipment applicability, overall sealing of the system, full negative pressure operation, no dust spillage, easy maintenance, and low operating costs. Its process parameters
Cronus has won wide acclaim for its precise, efficient and stable ultrafine grinding mills. If you are looking for a grinding machine that can perfectly meet your production needs and help your company achieve breakthrough development, Cronus will be your best choice. We are committed to providing you with excellent solutions for powder processing with advanced grinding technology to help you open a new chapter in your career. Contact Cronus now, let us work together to create a brilliant future! Looking forward to working with you on the road to success!
* The above data is for reference only. For specific information, please refer to the actual product or product manual.
