In the limestone processing industry, high-efficiency, energy-saving and environmentally friendly grinding equipment has always been the goal pursued by enterprises. The emergence of CRLMX1800 ultra-fine vertical grinding mill has brought a new solution to limestone processing, and it stands out among many grinding equipment with its excellent performance and significant advantages. Working Principle The mill […]
Fineness:
325~1500 mesh
Capacity:
3.8~16t/h
Scene:
Application scenario: The equipment is suitable for ultrafine grinding of non-metallic minerals such as calcite, marble, limestone, heavy calcium, talc, barite, dolomite, etc.; it can provide high-quality fillers and additives for papermaking, plastics, coatings, rubber, inks, chemicals and other industries.

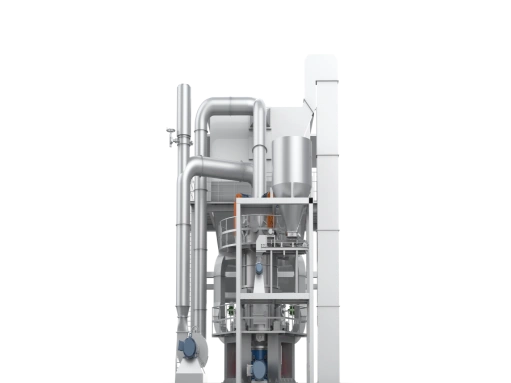

In the limestone processing industry, high-efficiency, energy-saving and environmentally friendly grinding equipment has always been the goal pursued by enterprises. The emergence of CRLMX1800 ultra-fine vertical grinding mill has brought a new solution to limestone processing, and it stands out among many grinding equipment with its excellent performance and significant advantages.
Working Principle
The mill achieves efficient grinding of limestone through a unique grinding roller and grinding disc structure. During operation, the limestone raw material is evenly fed into the center of the grinding disc by the feeding device. As the grinding disc rotates, the material moves to the edge of the grinding disc under the action of centrifugal force and is crushed by the grinding roller.
While the grinding roller rolls on the grinding disc, it exerts a huge pressure on the material, causing the material to be crushed and ground between the grinding roller and the grinding disc. The material that has been initially ground is carried to the grading device by the airflow, and the qualified fine powder is collected, and the unqualified coarse powder is returned to the grinding disc for re-grinding, and the cycle continues until the required fineness is reached.
Product advantages of CRLMX1800 ultrafine vertical mill
Stable and reliable operation, high grinding efficiency, stable product quality, strong equipment applicability, overall sealing of the system, full negative pressure operation, no dust spillage, easy maintenance, low operating cost, various process parameters, performance indicators, etc. are close to the international advanced level.
System Power (Main Motor + Fan + Classifier + Auxiliary) (kW)
560~600
700~750
CRLMX1200 Heavy Calcium Carbonate Grinding Data
Fineness (mesh)
325
600
800
1000
1250
Output (t/h)
10~12
7.5~8.0
6.5~7.0
5.0~5.5
3.8~4.3
D97 (μm)
45±1
25±1
20±1
13±1
10±1
Specific Surface Area (cm²/g)
6500±1000
10000±1000
12500±1000
14000±1000
16000±1000
Material Requirements: Calcite or marble, Mohs hardness ≤3, feed size ≤10mm.
CRLMX1400 Heavy Calcium Carbonate Grinding Data
Fineness (mesh)
325
600
1000
1250
Output (t/h)
15~16
11~12
7.5~8.0
6.0~6.5
D97 (μm)
45±1
25±1
13±1
10±1
Specific Surface Area (cm²/g)
6000±1000
12000±1000
14000±1000
16000±1000
Material Requirements: Calcite or marble, Mohs hardness ≤3, feed size ≤10mm.
If you are looking for an efficient and energy-saving limestone grinding equipment, CRLMX1800 ultrafine vertical grinding mill is undoubtedly your best choice.
* The above data is for reference only. For specific information, please refer to the actual product or product manual.
