Granite Mining Machinery Trailblazer: Double Roll Crushers Unleash Potential
In the dynamic world of granite processing, double roll crushers are a key game-changer. They have revolutionized the transformation of granite, transforming this tough material from its raw, massive state in the mines to a refined product and taking it on a complex journey. Granite’s journey from quarry to final product depends largely on the […]
Fineness:
--
Capacity:
--
Scene:

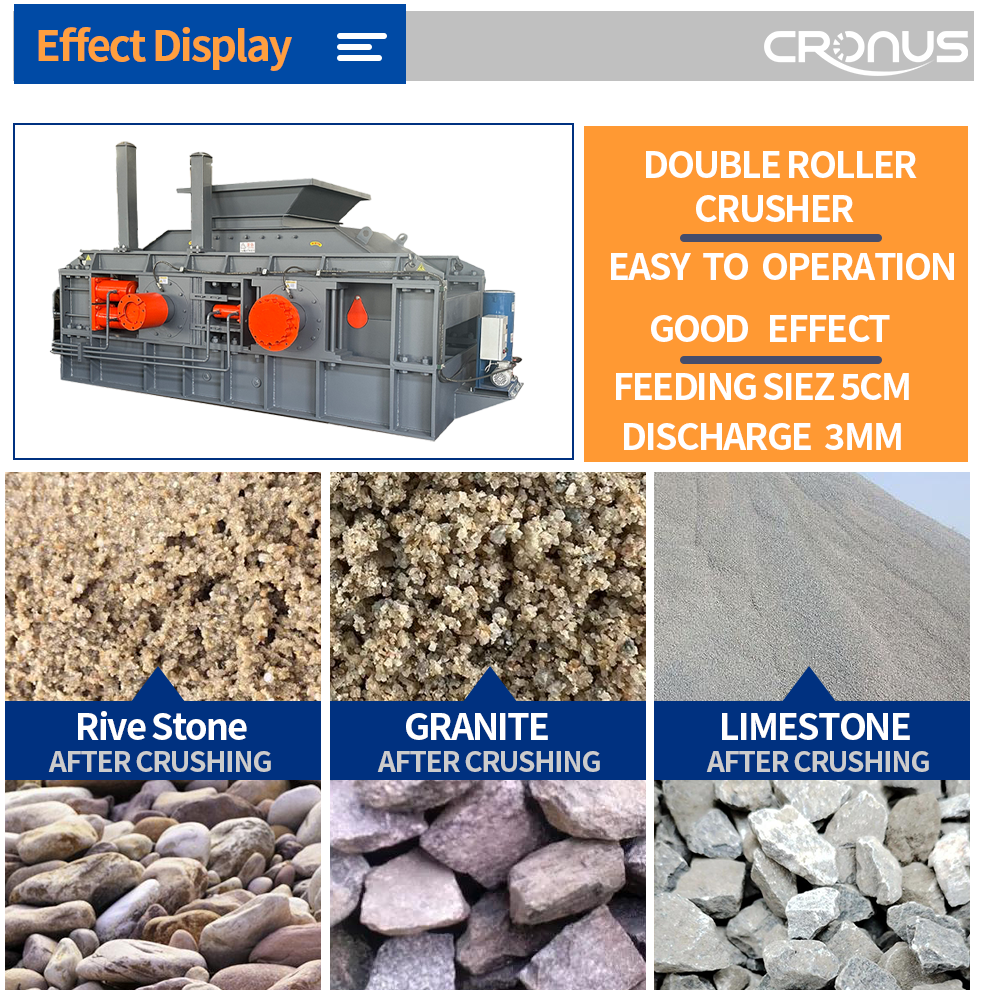

double roll crusher is specially used to process various materials with medium hardness, such as coal, limestone and slag. The equipment relies on two rollers rotating in opposite directions to carry out crushing operations and is widely used in mining, metallurgical production, chemical industry and other fields.
In the dynamic world of granite processing, double roll crushers are a key game-changer. They have revolutionized the transformation of granite, transforming this tough material from its raw, massive state in the mines to a refined product and taking it on a complex journey. Granite’s journey from quarry to final product depends largely on the power of double roll crushers.
Granite is a coarse-grained (phaneritic), intrusive igneous rock composed primarily of quartz, alkali feldspar, and plagioclase.
Rollers: two parallel mounted rollers, the surface can be smooth or with teeth, usually made of high manganese steel or other wear-resistant materials. Transmission device: including motor, reducer and coupling, driving the rollers to rotate. Adjustment device: used to adjust the roller spacing and control the particle size of the output material. Frame: supports all components to ensure stable operation of the equipment. Safety device: such as overload protection to prevent equipment damage.
Processing materials of double-roll crusher
Double roll crusher in mining field
Double-roll crusher is widely used to crush ores, coal and other resources of various hardness, providing suitable particle size materials for subsequent smelting and processing.
Metallurgical industry
This equipment is often used to treat solid wastes such as slag and coke, realize the effective recycling of resources, and optimize the production process.
Chemical production
Double-roll crusher plays a key role in crushing various chemical raw materials, ensuring that the raw materials meet the ideal particle size requirements, which is convenient for subsequent chemical reactions and processing.
Building materials industry
It is often used to process raw materials such as limestone and gypsum, and provide standard fine crushed materials for the manufacture of cement, gypsum board and other products.
Parameter of double roller stone crusher
Specification and model
Roll diameter (mm)
Feed size (mm)
Productive capacity (t/h)
2PGT400×250
φ400
≤25
2-10
2PGT400×400
φ400
≤25
5-12
2PGT610×400
φ610
≤30
5-20
2PGT750×500
φ750
≤30
10-40
2PGT800×600
φ800
≤40
12-50
2PGY800×800
φ800
≤40
40-50
2PGY800×1000
φ800
≤40
50-80
2PGY1000×800
φ1000
≤40
50-80
2PGY1000×1000
φ1000
≤40
80-100
2PGY1200×1000
φ1200
≤60
100-120
2PGY1200×1200
φ1200
≤60
120-150
2PGY1500×1000
φ1500
≤80
150-200
2PGY1500×1200
φ1500
≤80
200-250
2PGY1800×1000
φ1800
≤100
250-300
2PGY2000×1200
φ2000
≤120
300-400
Product advantages of double-roll crusher
Simple and clear structural design: The components are tightly connected, making maintenance more convenient and quick.
High-efficiency crushing capacity: High crushing ratio can ensure that the particle size of the crushed material is more uniform and consistent, improving product quality.
Relatively low operating energy consumption: At the same time, high crushing efficiency helps to reduce production costs and improve economic benefits.
Flexible and adjustable particle size: The equipment has strong adaptability and can flexibly cope with a variety of materials with different hardness and properties to meet diversified production needs.
* The above data is for reference only. For specific information, please refer to the actual product or product manual.
